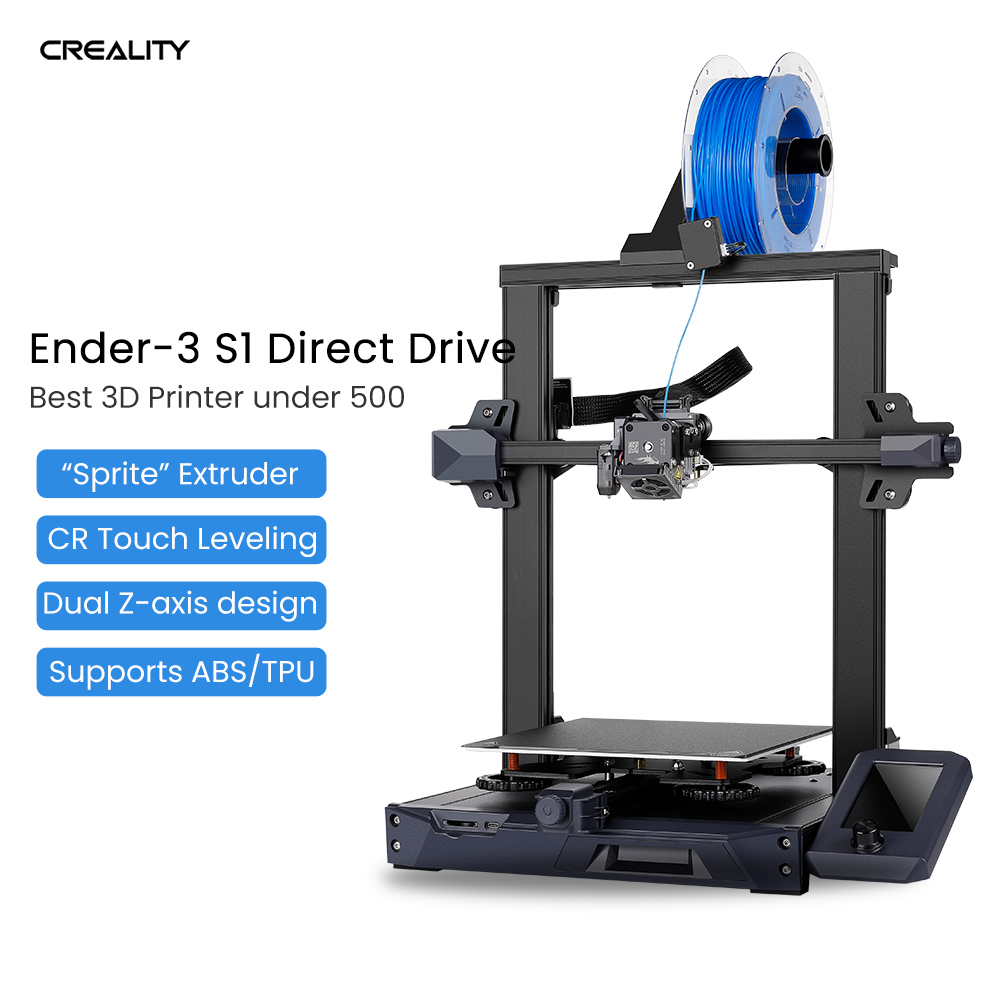

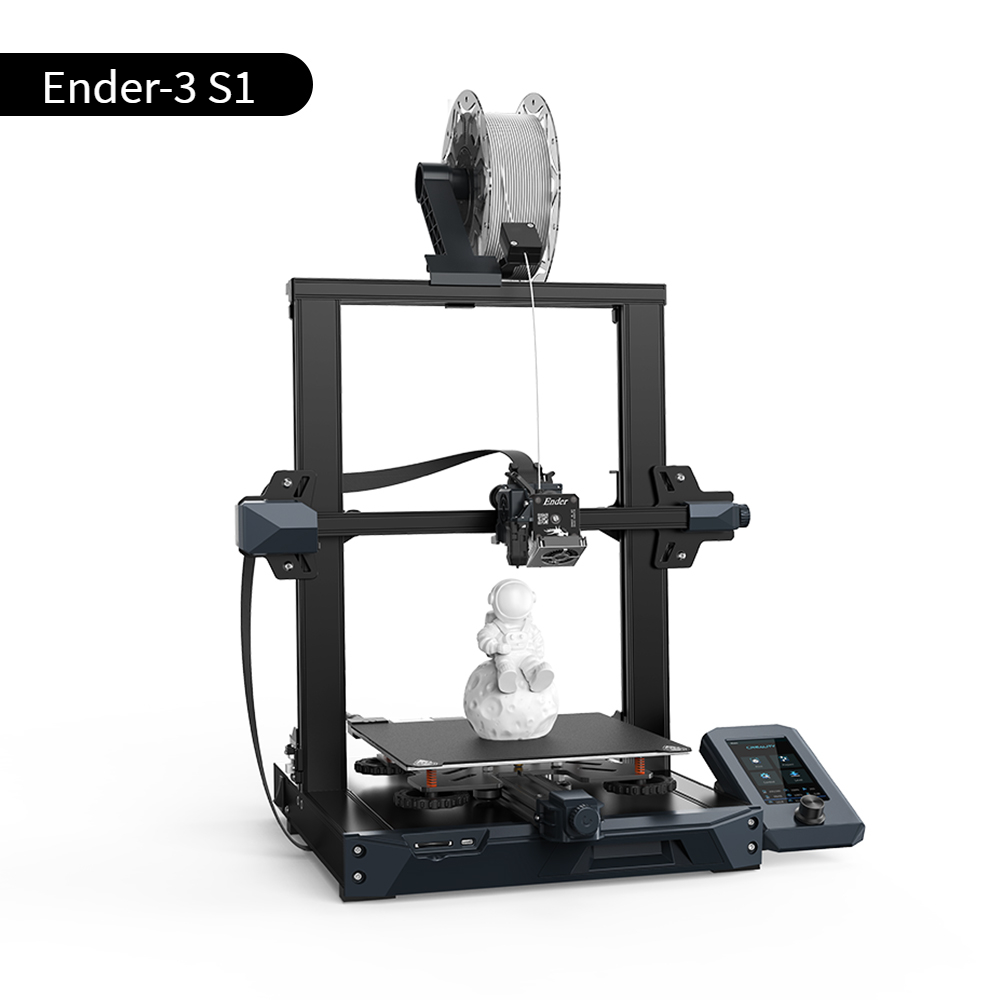

Creality Upgraded Ender 3: Ender-3 S1 Direct Drive | Auto Leveling 3D Printer

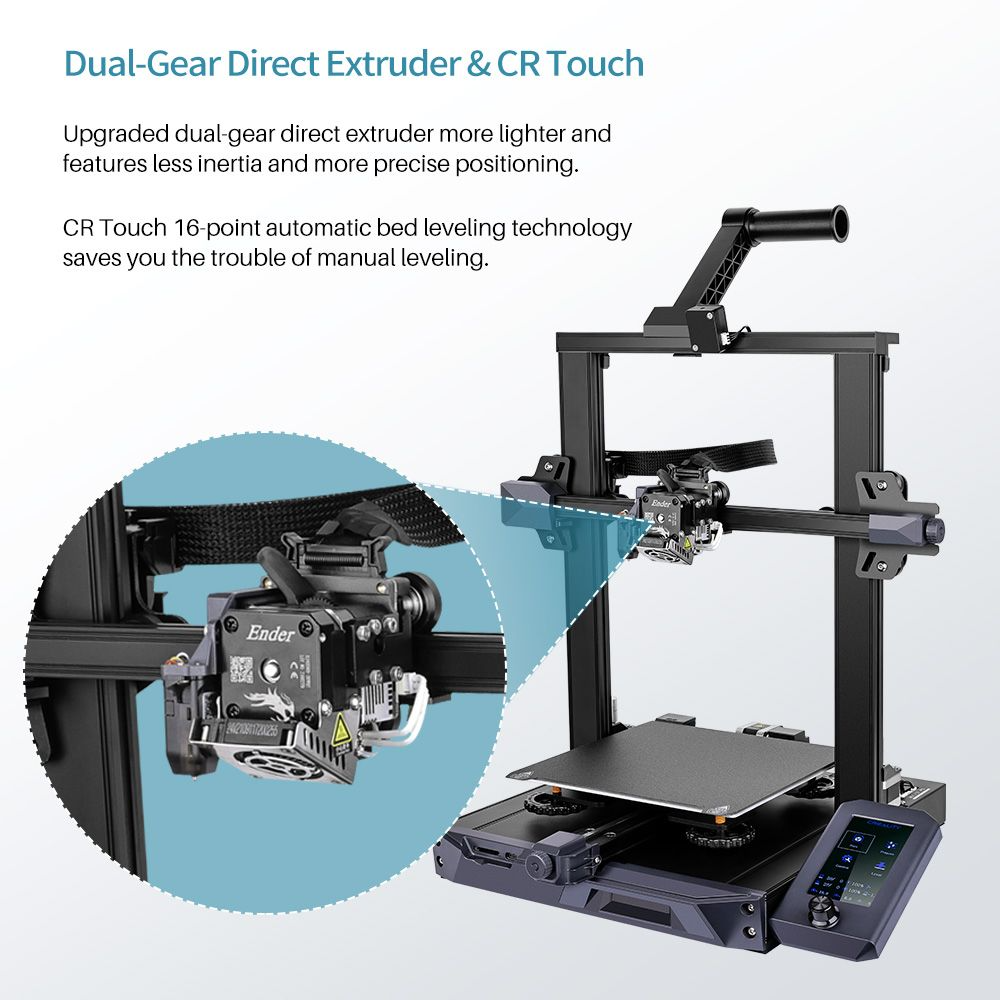

Sprite Direct Dual-Gear Extruder: The“Sprite" is lighter and features less inertia and more precise positioning, supports PLA/TPU/PETG/ABS print filaments.
Auto Leveling with Creality CR Touch

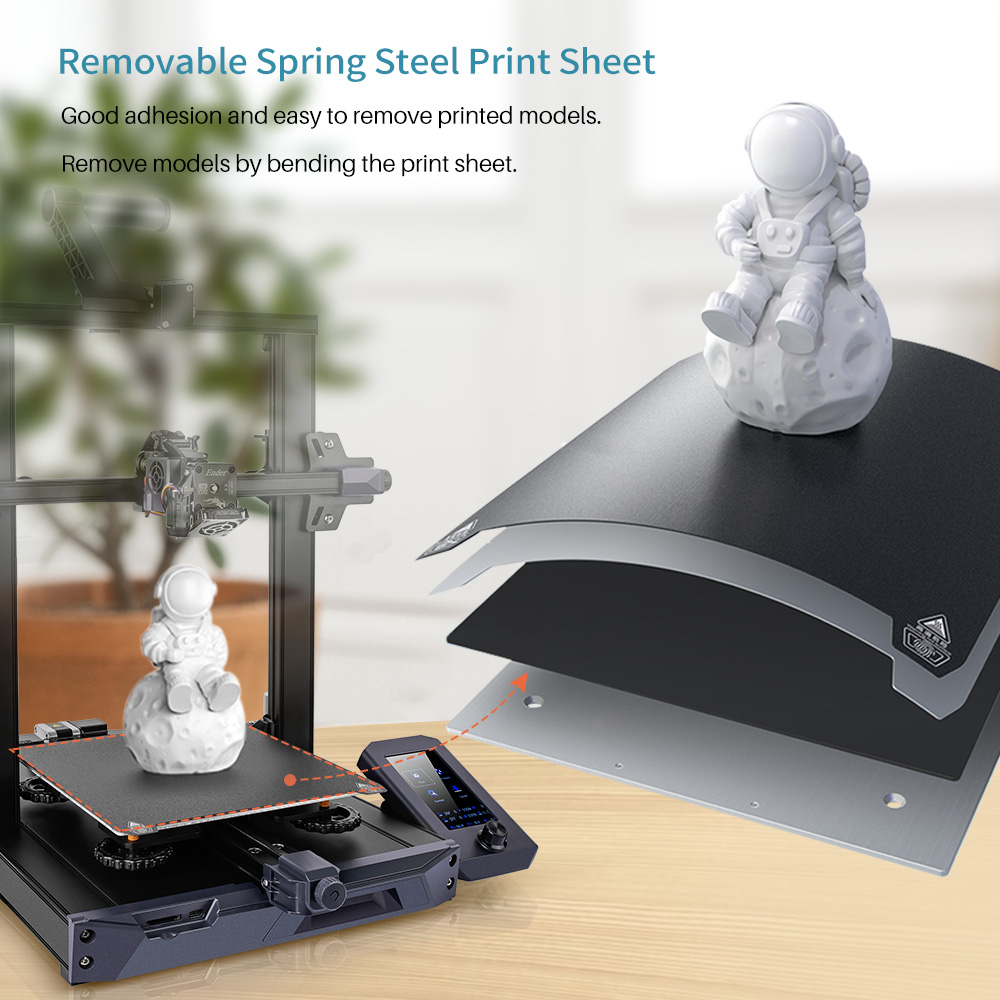

PC magnetic build plate: Combina with the advantage of PC Spring Steel and Magnetic Sticker for the better bed adhesion and good experience for model released.
Z-axis Dual-screw+Z-axis Dual-motor Design: Compares to Ender-3, Ender-3V2, Ender-3Max, Ender 3S1 has upgraded to the Dual Z-axis designadds stability to the X-axis gantry to improve printing quality and reduce the wear on the mechanical components.
- Ender 3 S1 vs Ender-3 V2 in comparison -
What's the difference between the Ender-3S1 and Ender-3V2?
Ender-3S1 is the first DIRECT DRIVE 3D PRINTER of CREALITY in Ender Series. It supports more soft materials. That is the one of biggest difference between Ender-3S1 & Ender-3V2. Additionally, it comes preinstalled with CR Touching Auto Leveling Kit, and the printing height will be more.
In details, most of function continued and updated on Ender-3V2.
| Ender 3 S1 | Ender 3 V2 | |
|---|---|---|
| Machine Size | 487 x 453 x 622 mm | 475 x 470 x 620 mm |
| Print volume: | 220 x 220 x 270 mm | 220 x 220 x 250 mm |
| Display: | color 4.3 inch LCD display with rotary knob | color 4.3 inch LCD display with rotary knob |

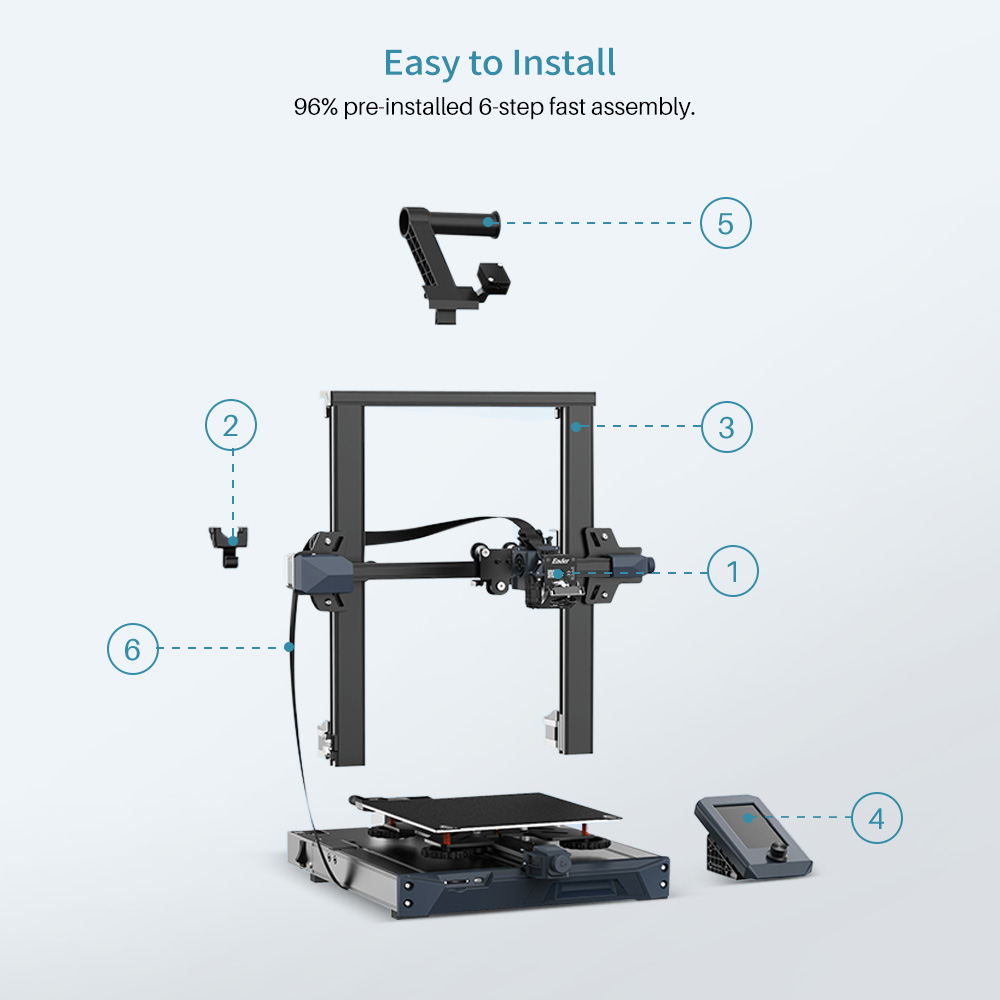

| Structure: | mostly pre-assembled (~ 15 min.) | Partially pre-assembled (> 45 min.) |
| Extruder: | Direct Drive | Bowden |
| Print bed leveling: | Automatic | Manual |
| Accuracy: | 0,1 mm | 0,1 mm |
| Min. layer thickness: | 0,05 mm | 0,1 mm |
| Nozzle: | 1 x 0.4 mm | 1 x 0.4 mm |
| Filament: | 1.75 mm (PLA, ABS, PETG, TPU) | 1.75 mm (PLA, ABS, PETG, TPU) |
| Max. nozzle temperature: | 260 °C | 255 °C |
| Max. print bed temperature: | 100 °C | 100 °C |
| Print speed: | 30-60 mm/s (max. 150 mm/s) | 30-60 mm/s (max. 180 mm/s) |

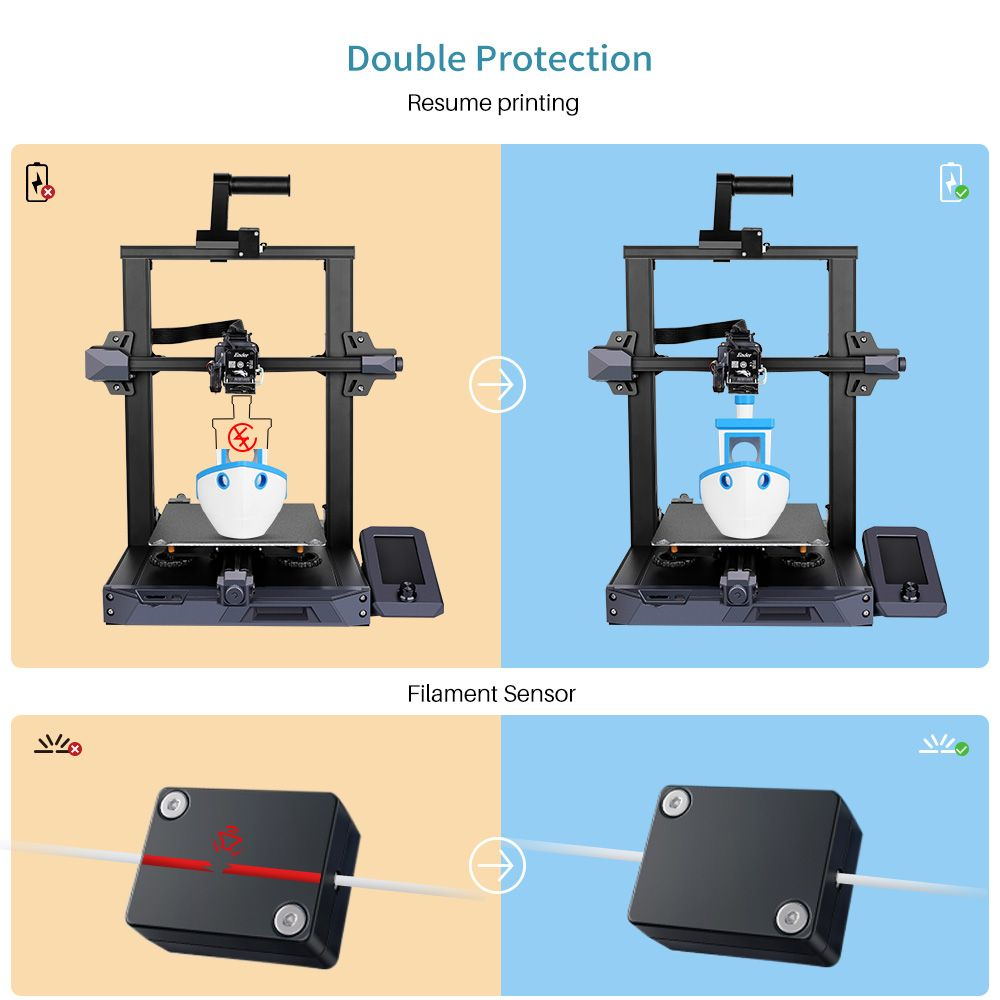

| Resume print: | Yes | Yes |
| Filament sensor: | Yes | No |
| Pressure bed: | PC on spring steel, flexible, magnetic | Textured glass bed |
